Xingdong
DC Axial Fan-8020

· Ultra-quiet/Low noise, minimum noise level is 18.5dB

· Not afraid of harsh environments, high stability, long lifespan up to 80,000 hours

· Waterproof and dustproof up to IP68 rating, can work directly in water

· Supports PWM intelligent Number Of Rotations control, DC voltage Number Of Rotations control, RT temperature control Number Of Rotations regulation

· Supports FG signal, RD function, PWM intelligent Number Of Rotations control, DC voltage Number Of Rotations control

· High temperature resistance, low temperature resistance


Consult Now
Product Attributes:

  • Brand:

    Xingdong D-FAN

  • Model:

    8020

  • Material:

    PBT 94V-0

  • Specifications:

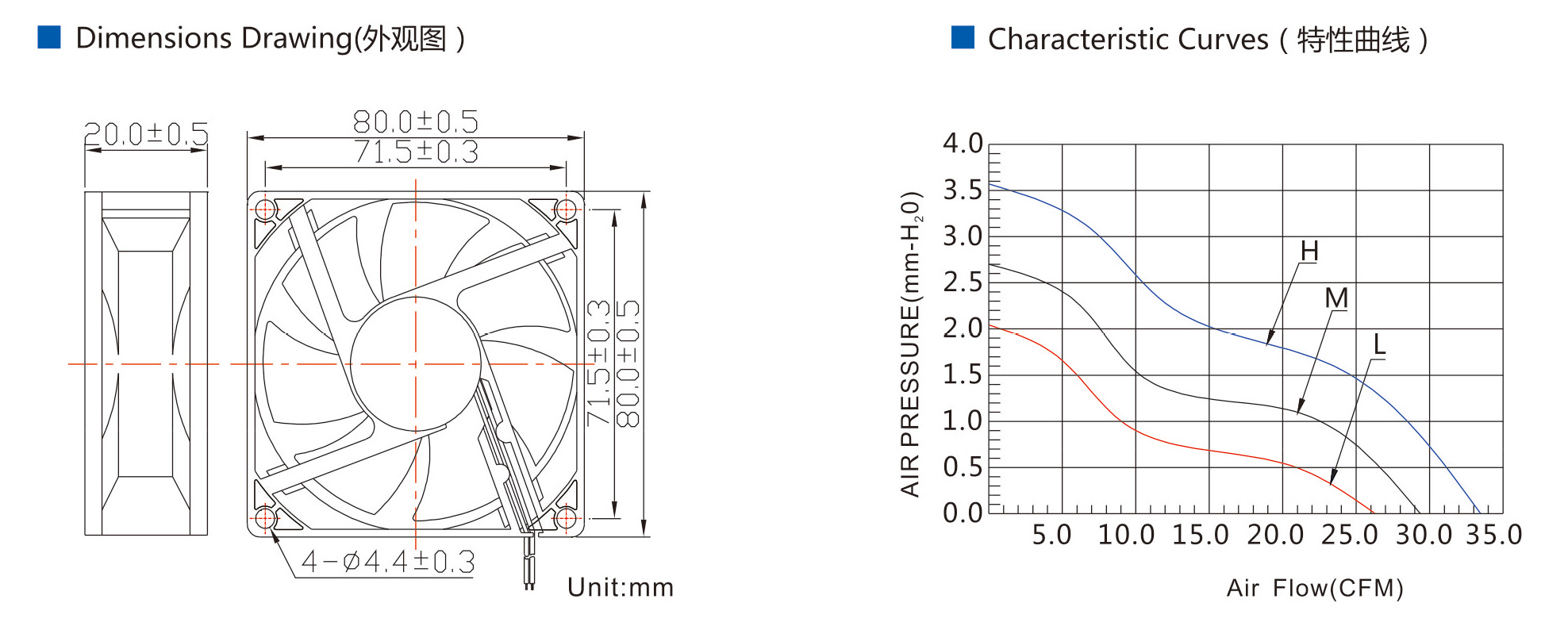

    80×80x20mm

  • Insulation Impedance:

    10MΩ / DC250V

  • Insulation Withstand Voltage:

    1mA AC500V/1S

  • Wireway:

    National Standard Wire, Red is Positive (+), Black is Negative (-)

  • Environmental temperature range:

    -10℃~+70℃ (Operating) -40℃~+70℃ (Storage)

Specifications:
ModelBearing TypeVoltageVoltage RangeCurrentNumber Of RotationsAirflowAir PressureNoiseWeight
VDCVDCARPMCFMmmH₂OdBAg
DFH8020SSleeve1210.8-13.20.20320033.953.5530.770
DFM8020S0.15280029.292.7026.9
DFL8020S0.10240025.152.0323.2
DFH8020BBall0.20320033.953.5530.7
DFM8020B0.15280029.29
